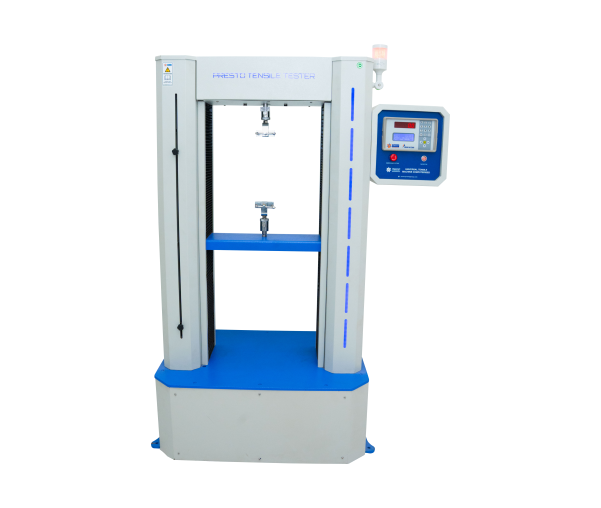

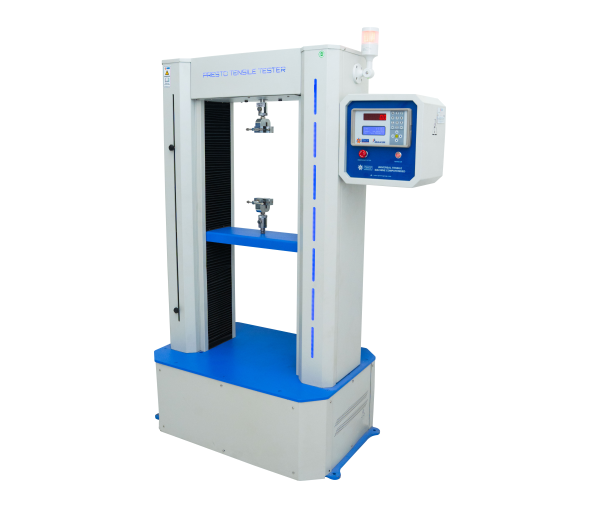

Zeus Ultimo 3.0 tensile testing machine
Model Zeus Ultimo 3.0
Presto's newly launched Zeus Ultimo 3.0 tensile testing machine is one of the high-quality lab testing instruments that is used to test the tensile properties of the materials and help manufacturers test the breaking, tensile, and compression strength of various materials, components, and finished products.
This UTM machine has been designed in accordance with various test standards that include ASTM D412, ASTM D429-73, ASTM D624, ATM D638-01, ASTM D76, IS 13360-5-7, IS 3400(Part1-1987).
By using this quality UTM machine one can also evaluate the performance of different sets of materials and ensure that quality products will be delivered to the customers. By conducting tensile strength tests on the products, the manufacturers will ensure the specimen's durability and elongation strength.
PRESTO tensile testing machine computerized model will perform the test in two modes-as a stand-alone (digital control) machine or through computer control with software. This UTM machine comes with reliable and easy-to-operate user-friendly software that can be useful in various industries like rubber, plastics, automotive, polymers, textiles, R&D labs, production, and material testing.
- Power: 220V, Single / Three phases, 50 Hz
- Display: Graphical with test data output through Inbuilt Software
- Accuracy: ± 2% at Full Load (with master load)
- Standard Speed: 50-500 mm/min
- Grip to Grip Separation: Min 25mm and Max. 700mm (applicable only with vice-type standard grip)
- Digital load indicator: 7-segment LED Display (optional as per request)
- Drive Mechanism: Variable Frequency AC Drive
- Safety: Yes
- Grippers(optional added based on requirement):
- Flexural
- Compression Plate
- Wedge Type
- Roller Type
- Vice Type (Standard Gripper)
- Communication Converter: USB / RS 485
- Material: Mild Steel
- Finish: Powder coated Havel Gray & Blue combination finish and bright chrome/zinc plating for corrosion-resistant finish
- Dimensions: 1325 x 650 x 1550 mm
- Advanced load sensor sensing through advanced electronics.
- Speed Control through Variable Frequency drive automation by Graphic user interface PC.
- Highly sensitive load sensor with linearity feature and repeatability
- Cross-head travel length: 800 mm without grips
- Twin column rugged structure
- Safety limit switches for over-travel safety
- Hardened lead screws/ball screws for frictionless movement
- Load cell calibrated by NABL-approved proving ring/dynamometers
- Advanced Navigation System
- High accurate micro-controller based system controls with integrated software
- User-Friendly software with intuitive icons and robust architecture
- Inbuilt hardware/software in pen drive / Online Link.
- Easy Data Management. User programmable product identification, lot no., the shape of the specimen, company name, operator details, etc.
- USB compatible for high-speed data transfer
- Export Test report in Excel & PDF format
- Print preview of test reports with Zoom in Feature available
- Online test run status can be viewed graphically or in raw data form
- Secured working with key protection feature
- Ease of use features: Graph setup, test control wizard, result, reports, live test panel.
- Graph setup: user-defined graph scale/range with Graph Title
- Test Control Wizard to set test parameters like tension, compression, and changeable units in Kgs/N or cm/mm.
- Automatic end test/return to home position through software interface after completion of the test.
- Immediate analysis of results after the test with complete accuracy & precision.
- Option to email test reports
- Single Test start with one click entry of the mouse.
- Dual Load Cell Auto Calibration facility
- Third Load cell optional
A: Buyers can send an email to info@prestogroup.com. You can also speak with the team at +91 9210903903.
Q: Why is Presto known as a trusted UTM machine manufacturer?
A: Buyers value Presto for its solid machine design, smooth testing control, and clear test readings used in daily quality checks.
Q: Is Presto a certified UTM machine supplier?
A: Yes, Presto supplies certified UTM machines used by testing and quality teams.
Q: What makes the Zeus Ultimo 3 suitable for advanced testing needs?
A: The machine offers servo control, smooth load application, and clear data output that helps users study material behaviour with ease.
Q: Are grippers available with the machine?
A: Yes, grippers can be provided based on the material being tested.
Q: How many tests can be performed using this machine?
A: This machine supports up to 37 different quality tests, making it suitable for a large range of testing needs.
