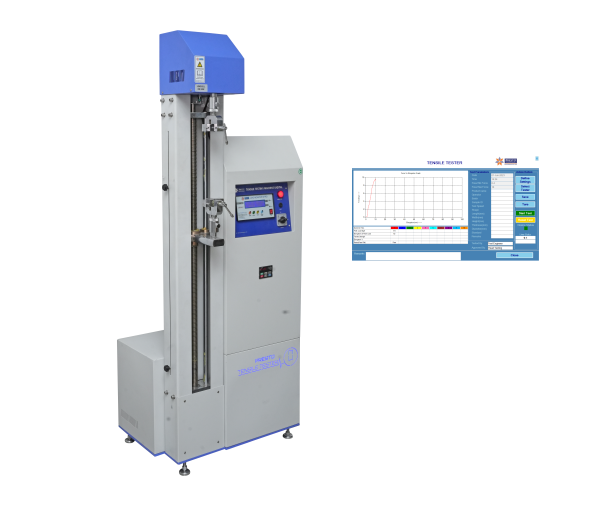

Tensile Tester Servo Manufacturer & Supplier in India

Presto's recently launched Tensile Tester Servo is a versatile and powerful lab testing instrument that can be used to test the tensile strength of the materials. Testing the tensile strength of the materials will help the manufacturers to determine the mechanical properties of the materials that include elongation strength, yield strength, and other mechanical properties.

This newly launched tensile strength tester is a reliable and user-friendly lab testing instrument that can be used in different industries including rubber, plastics, automotive, polymers, textiles, R&D labs, production, & material testing.

This highly versatile tensile strength tester is considered to be the one-stop solution for studying the tensile properties of various products. It has been designed as per industrial standards that include ASTM D412, ASTM D429-73, ASTM D624, ATM D638-01, ASTM D76, IS 13360-5-7, and IS 3400(Part 1-1987).

This means users will get highly accurate lab testing results every time. With the help of this quality lab testing instrument, one can calculate the direct tensile strength with a high precision load cell interface.

Power: 220V , Single, 50 Hz
Display: Touch Screen (7Inch)
Accuracy: ± 2% at full range (with master load)
Speed: 1 mm/min to 1000 mm/min (Changeable through speed controller)
Grip to Grip Separation: Min 60 mm and Max. 700 mm (applicable only with vice-type standard grip)
Load Capacity: Up to 500 Kgf
Safety: Yes(Limit Switches)
Grippers (optional added based on requirement): Vice Type (Standard grippers)

Optional: Pneumatic and Special Grips

Material: Mild Steel
After the test Home return: Yes
Finish: Powder coated Havel Gray & Blue combination finish and bright chrome/zinc plating for corrosion-resistant finish
Dimensions: 400 x 500 x 1566 mm

Load cell calibrated by NABL-approved proving ring/dynamometers
Cross-head travel length: 700mm grip to grip ( with standard vice type grip)
Highly accurate micro-controller based system controls
Immediate analysis of results after test with complete accuracy & Precision
Program profile for selecting test parameters and performing the test.
Easy Data Management. Users can create product identification, test speed, test method, test mode, etc.
USB option available for storing test data (Pen drive not a part of offer)
Data output in PDF and CSV file format.
Can be programmed home return with time defined.
Calculate the Direct Tensile Strength with High precision Load cell interface
Calculate the Test results, Min. /Max. /Avg.
Single-column rugged structure
Safety limit switches for over-travel safety
Signature Calibration facility with Password.
Hardened ball screws for frictionless movement

Images

For More details & Information

Please fill this form

Call on +91 9210 903 903
