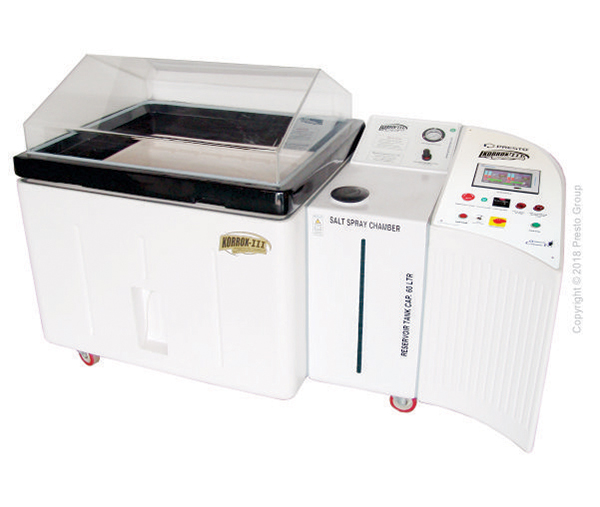

Salt Fog & Spray Testing Chamber in Bangladesh

Presto’s Salt Fog & Spray Testing Chamber for Bangladesh is designed to measure the corrosion resistant property of materials and effects of environmental factors on the product before starting the process of manufacturing to produce high-quality goods. The instrument is designed as per the standard test methods to measure various properties of the material against corrosion under different climatic conditions. Presto manufactures three models of Salt Spray chambers namely, Korrox –III, CASS cum salt spray chamber and Eco model with customized specifications.

Presto design Salt Spray Chamber for Bangladesh with user-friendly features. The instrument is provided with touch screen control panel which helps to set the desired level of temperature easily. The chamber of the device is designed with double-walled fiber plastic which is duly fitted with glass wool insulation. This insulation provides shelter to the chamber from the corrosive environment so that the samples can be tested efficiently. The testing machine is provided with some standard accessories like a regulator, gauges, cyclic timer, air purging, time totalizer along with the racks to place the specimen.

• Presto’s salt spray chamber is provided with moisture cum oil filter air regulator which ranges from 0 to 30 psi.
• The instrument is designed with fiber reinforces plastic.
• The temperature range of the instrument can be set from ambient to 45^o
• The device offers the accuracy of +/- 1^o
• It has digitally programmable temperature controller cum indicator with PT 100 type sensor.
• The testing instrument is designed on the basis of following standards like ASTM B117 – 11, IS 5528, JIS Z 2371, and IS 6910 (R2003).

• It has double wall plastic construction duly filled with glass wool insulation
• Jar is provided with the instrument to collect salt solution.
• A high-pressure of the drum is also provided with the device.
• The machine is provided with a programmable digital controller to measure the temperature.
• The temperature of the chamber can be controlled easily through the touch screen control panel.
• Touch screen features:
• 7″ TFT LCD screen with 65536 colors
• Supports Ethernet communication protocols
• 3M Flash Memory
• 480 x 234 pixels IP 65 complaint
• ARM9 32-bit CPU
• 8 function keys
• Supports CF memory card
• USB 1.1 is provided for high-speed screen data download
• Provides USB Host for USB flash drive
• 3 sets of COM ports for multiple
• 256K bytes SRAM
