Melt Flow Index Tester - NEO 2.0

Melt Flow Index Tester - NEO 2.0
If you are working in the plastics or polymer industry, then you should be aware that it is important for manufacturers to test the melt flow rate of these materials. The melt flow rate of the materials is considered to be the measure of the flow of polymers when it will be melted. The result of the melt flow rate will be reported as the weight of the polymer that will flow through the orifice in a certain period of time.

Model MFI NEO - 2.0


Video

pdf

 If you are working in the plastics or polymer industry, then you should be aware that it is important for manufacturers to test the melt flow rate of these materials. The melt flow rate of the materials is considered to be the measure of the flow of polymers when it will be melted. The result of the melt flow rate will be reported as the weight of the polymer that will flow through the orifice in a certain period of time. To make it easy for you to conduct a melt flow test for polymers, we at Presto have come up with one of the amazing lab testing instruments known as MFI tester NEO 2.0. This amazing lab testing equipment is highly useful in testing the melt flow properties of molten plastics under various test standards ASTM D 1238-1992, IS 2267-1972, IS 2530-1963, IS 10810-1984.


This HMI-based touchscreen model will provide you with an accurate testing result of the melt flow properties of the materials. It also comes with an auto sample cutting facility with a temperature setting and preset timer functions incorporated in HMI for accuracy and repeatability. Below we have listed the advanced features of the new version of the melt flow index tester.The machine is limited to 20 MFI usage.

  • Temperature Range: Ambient to 400º C
  • Display: HMI Based touchscreen 7"
  • Accuracy: ± 1ºC
  • Least Count/Resolution: 0.1ºC
  • Power: 220V, Single phase, 50 Hz
  • Sample Cutting:  Automatic Motorized
  • Temperature Control: Inbuilt PID Temperature Controller
  • Timer: Inbuilt in HMI Preset Timer up to 999 sec
  • Inner Diameter of heating barrel(cylinder): 9.550mm ± 0.007mm
  • Inner Diameter of Die: 2.095mm ± 0.005mm
  • Diameter of piston head: 9.474mm ± 0.007
  • Material of Heating Barrel(Cylinder): Die Steel
  • Sample Cutting Motor: 2 Torque 7Kg/cm, 60RPM
  • Sample Cutting Motor: 2 Torque 7Kg/cm, 60RPM
  • Load Cell Range: 800 gm, Least count 0.01 gm
Highlights:

  • Test Report: Yes, in PDF format
  • No. of Dead Weights:  4 (1.2kg, 2.16kg, 3.8kg, 5kg)
  • Material: Mild Steel
  • Finish: Powder coated Havel Gray & Blue combination finish and bright chrome/zinc plating for a corrosion-resistant finish
  • Dimensions: 400 x 580 x 630 mm

The latest model of Presto melt flow index tester i.e. MFI tester NEO 2.0 has been equipped with an advanced set of features that will make it easy for the manufacturers to conduct the melt flow test. With its highly corrosion-resistant body, you will be able to use this lab testing instrument for a longer time. Below we have listed the features of this lab testing equipment.


• HMI-based Touchscreen Model

• Result of MFI for individual test & average of all tests.

• Microprocessor-based inbuilt PID controller

• Automatic sample cutting

• Temperature setting and Preset Timer functions incorporated in HMI for accuracy and repeatability

• Die Steel barrel for uniform and the consistent heating of barrel/test cylinder.

• Test report can be generated in PDF format.

• Program profile for selecting test parameters and performing the test.

• Easy Data Management. Users can create product identification, test temperature, time, etc.

• USB option available for storing test data (Pen drive not a part of an offer)

• Data output in PDF and CSV file format.

• Can be programmed Pre-Heating Time.

• Calculate the Direct MFI value with High precision Load cell interface

• Calculate the Test results, Min. /Max. /Avg.

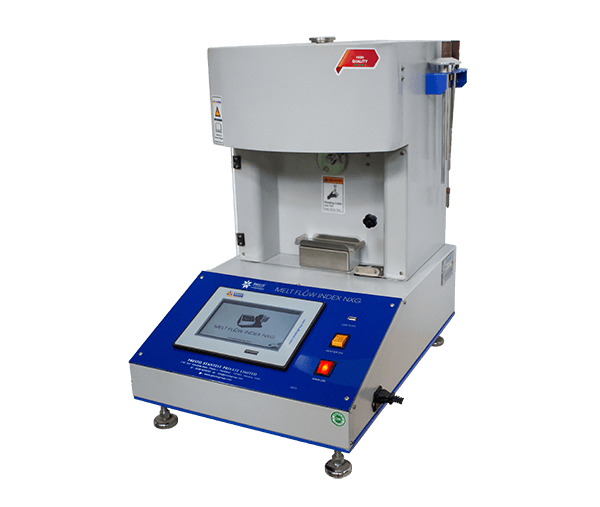

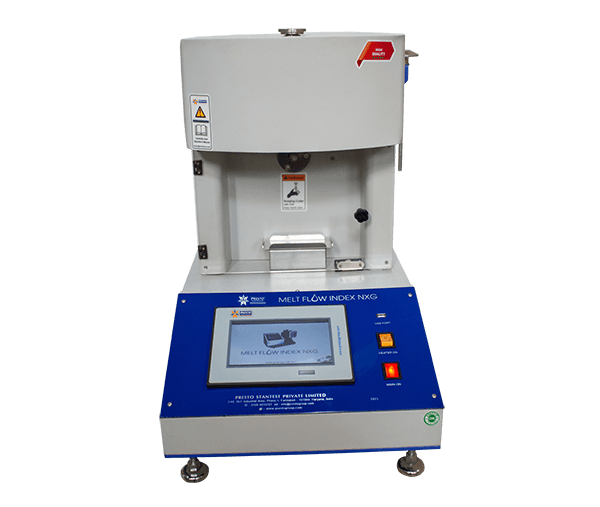

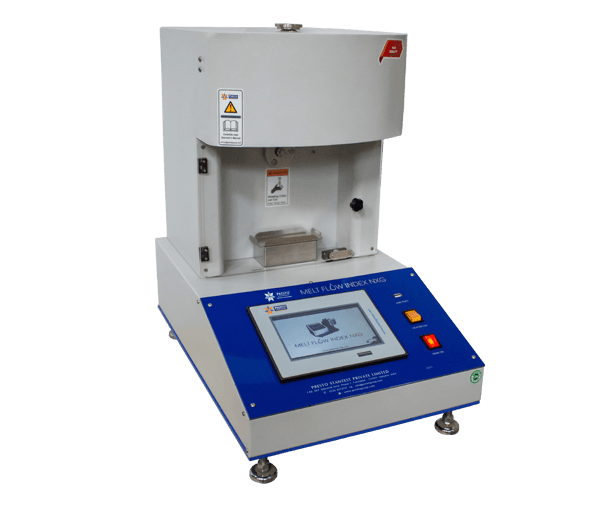

Images
