Hot air oven prima series

Hot air oven prima series
Elevated temperatures can have a significant impact on the physical properties of many materials. Either it can deteriorate the quality of the product or will lead to product damage. This can have a major impact on the performance of products and structures made from these materials. Thus, it is important for product manufacturers to test the physical properties of the materials at elevated temperatures so as to determine their quality.

Model PSO - Prima Series

Video

pdf

Presto has launched a high-quality Hot air oven prima series which is the most advanced and reliable testing equipment designed to detect the change in the physical characteristics of the material and to ascertain the actual working life of the testing device at elevated temperatures.

This Laboratory Hot Air Oven – Prima works on forced air circulation, and thermal convection principle, and performs various types of tests like aging, heat deformation, compression set, and heat resistance required in rubber and plastic industries.

Presto time-tested hot air oven compiles of the double-walled chamber, wherein the inside wall is fabricated using heavy stainless steel and the outside wall is made of duly powder-coated mild steel. Besides this, it has been incorporated with an air circulation fan that will help to maintain the heat efficiency of the materials in this testing chamber. Presto is a leading hot air oven manufacturer in India and offers this quality testing equipment at the best prices. To know more about the hot air oven price, you can consult with us today.

  • Display: Monochrome Touch Screen display
  • Size: 455 x 455 x 455 mm (18” x 18” x 18”)
  • Accuracy: ± 2ºC
  • Least Count/Resolution: 0. 1ºC
  • Power: 15A, 220V, Single phase, 50 Hz
  • Timer Range: Range 99 hr. : 59 min
  • Temperature Range: Up to 250ºC (Upper Ranges Available As per Requirement)
  • Communication port:  USB (Through converter)

Highlights:

  • Inlet Blower: 1 No.
  • Over Temperature alarm: Yes
  • Alarm Mute facility: Yes
  • Data logging: Real-time date: time: chamber temperature

  • Temperature control through PT-100 sensor
  • Intuitive Graphical Menu driven system
  • Highly accurate test results under uniform temperatures in the chamber
  • High Grade imported Glass Wool insulation
  • Maximum Thermal Efficiency by insulation means.
  • Advanced Digital Microprocessor based PID based temperature controller
  • In-built programmable soak timer
  • Auto tuning Advance PID controller
  • SSR-based output controls
  • Bright Touch screen  with user-friendly information in form of images and test values
  • Alarm output signal test process completion
  • Feather touch controls
  • Event Data recording with date & time stamping upto 2 Lacs
  • USB port and thermal Printer option
  • Equipped with rapid air circulation German imported fan for uniform and homogenous heating and maintaining temperature inside the chamber.

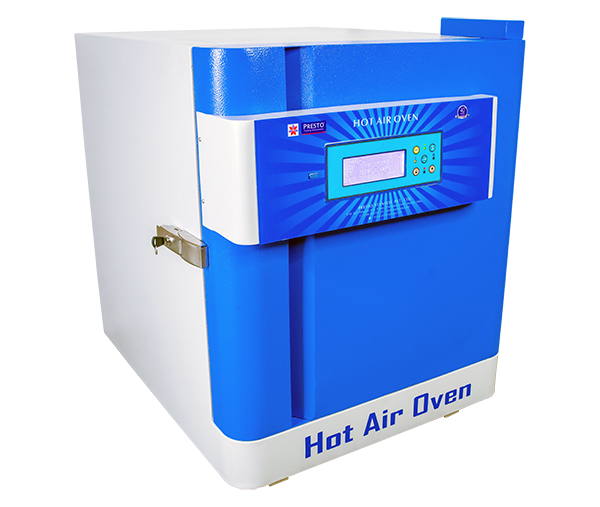

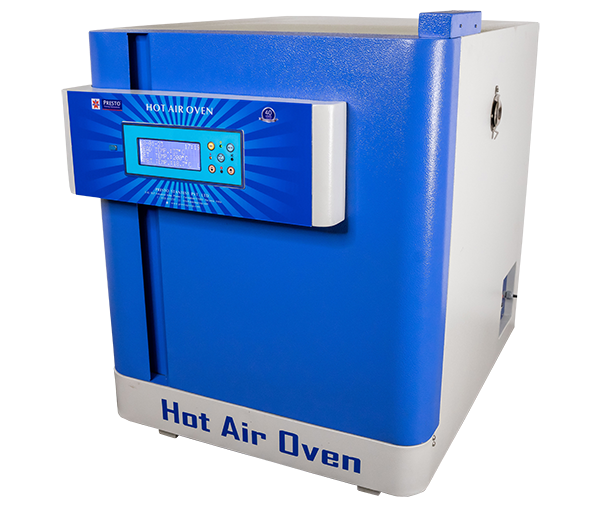

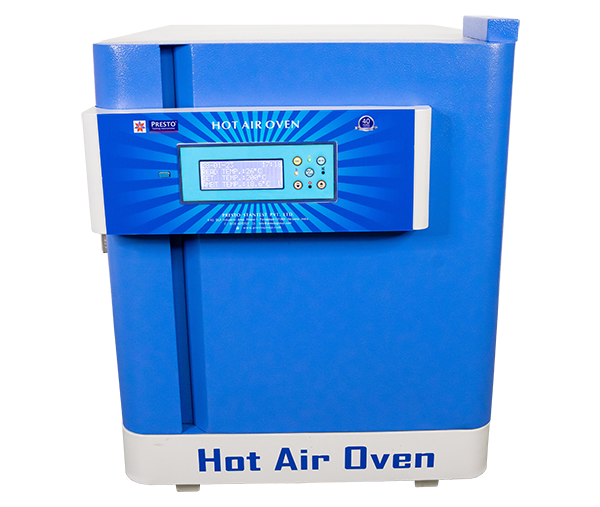

Images
